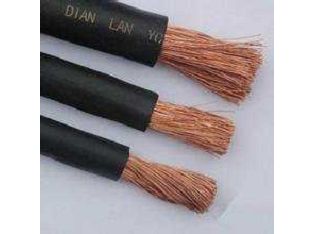

General Cable-sheath Rubber Compound

This series of rubber material implement the standards of GB/T5013-2008 nominal voltage 450/750V (or below)，among, TY suit SE3,TYW suit SE4,TYH is special material for electric welding machine. The traditional general…

Product Details

This series of rubber material implement the standards of GB/T5013-2008 nominal voltage 450/750V (or below)，among, TY suit SE3,TYW suit SE4,TYH is special material for electric welding machine.

The traditional general rubber sheathed cable sheath made of natural rubber and styrene-butadiene rubber mixture, early cure easily occur when in use, the problem of cable aging poor etc.. CPE rubber compound not only physical properties can meet the standard requirements, but also has the flame retardant performance, weather resistance, the appearance of fine bright, can greatly prolong the service life of the outdoor cable.



Performance comparison

Test item Unit TY （SE3）   TYW （SE4）   TYH（Electric welding machine）
GB5013 -2008 Test value   GB5013 -2008 Test value   GB5013-2008 Test value
Before ageing Tensile strength Intermediate MPa ≥7.0 8.0   ≥10.0 11.2   ≥12.5 13.8
Elongation at Intermediate % ≥300 410   ≥300 450   ≥300 470
Heat ageing test of air box Aging conditions Temperature ℃ 70±2   70±2   70±2
Time h 10×24   10×24   10×24
Tensile strength Intermediate MPa — —   — —   — —
Rate of change % ≤±20 -8   ≤±15 -3   ≤±20 -5
Tensile strength Intermediate % ≥250 355   ≥250 410   ≥250 425
Rate of change % ≤±20 -13.4   ≤±25 -9   ≤±20 -9.5
Hot set test Test conditions Test temperature ℃ 200±3   200±3   200±3
Load time min 15   15   15
Mechanical stress MPa 0.2   0.2   0.2
Load elongation % ≤175 45   ≤175 40   ≤175 55
Permanent deformation after cooling % ≤25 15   ≤25 10   ≤25 10
Oil test Test conditions Oil temperature ℃     100±2   100±2
Dipping oil h     24   24
Tensile strength Rate of change %   —   ≤±40 -18   ≤±40 -5
Elongation at Rate of change %   —   ≤±40 -25   ≤±40 -10
Low temperature test Brittle temperature ℃   —   — -40     —
Bending test Temperature ℃   —   -35±2 No crack     —
Time h     16
